Description
Compact and flexible for any job in the 12 Volt class
- Extremely short body design of 132 mm for drilling, fixing and screw driving in tight spaces

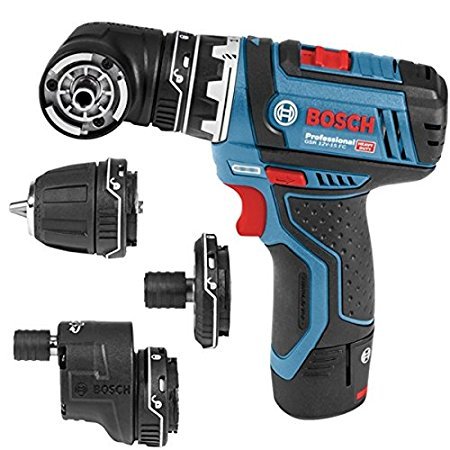

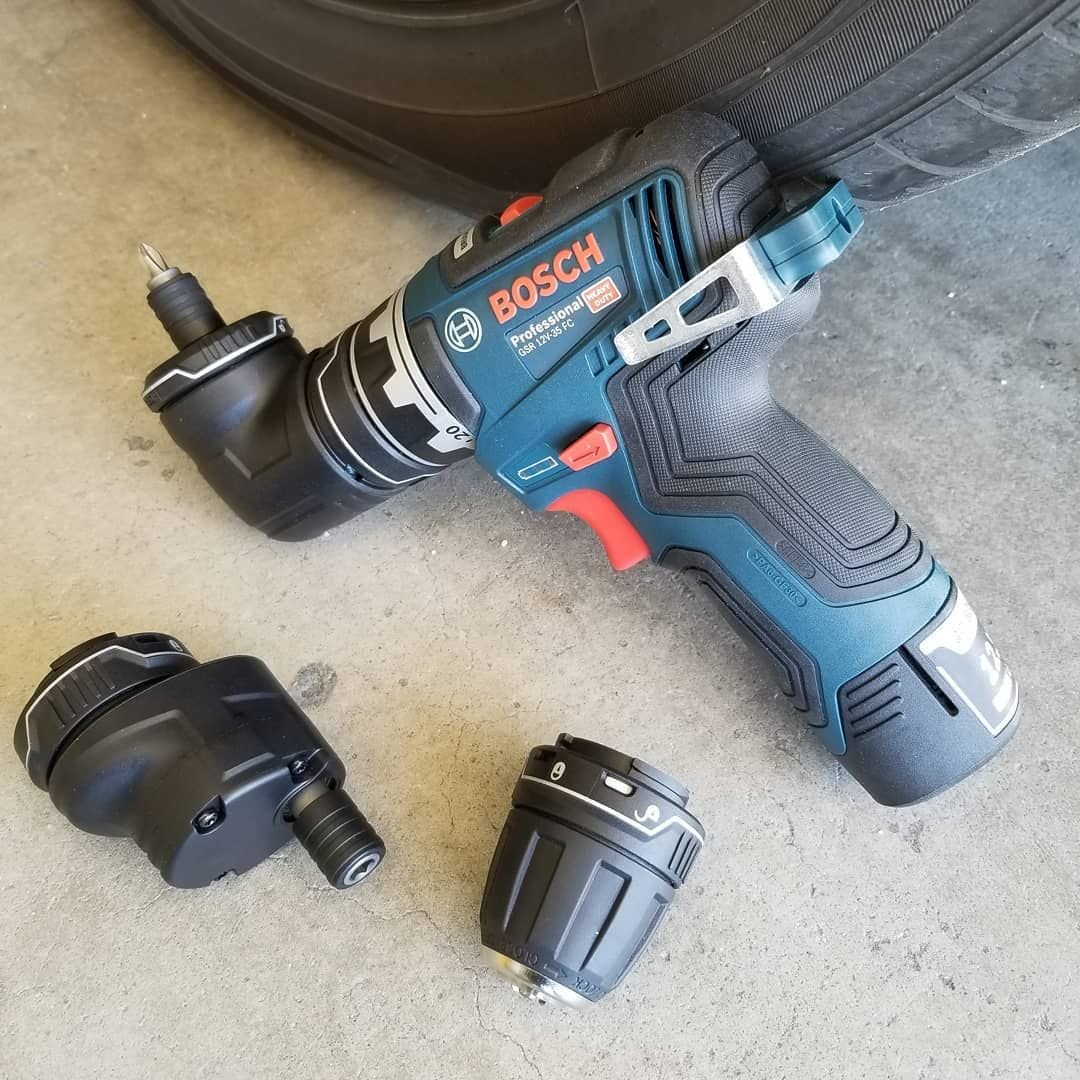

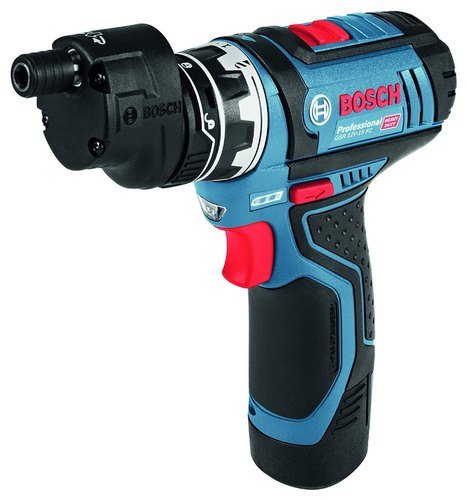

- Bosch FlexiClick interface with integrated magnetic bit holder enables attachment of a bit holder, a chuck adapter, an angle adapter and an offset angle adapter
- Angle and offset angle adapters can be adjusted and locked in 16 different positions with 360-degree mobility while on the drill
- “One-Click” interface ensures a tight fix to the machine at a glance
Technical data
| Additional data | |
|---|---|
| Battery voltage* | 12 V |
| Weight excl. battery* | 0.6 kg |
| Torque (soft/hard/max.) | 15/30/- Nm |
| No-load speed (1st gear / 2nd gear) | 0 – 400 / 0 – 1,300 rpm |
| Battery type | Lithium-ion |
| Chuck capacity, min./max. | 1 / 10 mm |
| Torque settings | 20+1 |
| Tool holder | 1/4" internal hexagon |
| Screw diameter | |
|---|---|
| Max. screw diameter* | 7 mm |
| Max. drilling diameter in wood | 19 mm |
| Max. drilling diameter in steel | 10 mm |
| Drilling diameter | |
|---|---|
| Max. screw diameter* | 7 mm |
| Max. drilling diameter in wood | 19 mm |
| Max. drilling diameter in steel | 10 m |
Specifications
| Battery Voltage | 12 V |
|---|---|
| Body Length | 132 mm |
| System | Bosch FlexiClick |
| Adapter Positions | 16, with 360 degree mobility |
| Bit Holder | Integrated magnetic |
