DIGITAL INCLINOMETER LM320B UNI-T

Description

DIGITAL INCLINOMETER LM320B UNI-T

LM320 series digital angle meters are used to measure the precise angle in a variety of applications, designed with 2/4 sided magnetic bottom, and  two-side laser design (LM320B) makes the measurement more accurate and convenient! This series can be used in manufacturing, home decoration/DIY, and other fields requiring accurate angle measurements. FEATURES Certificates: CE, UKCA

• Relative / absolute measurement
• 360°comprehensive measurement
• Data hold
• Portable and lightweight

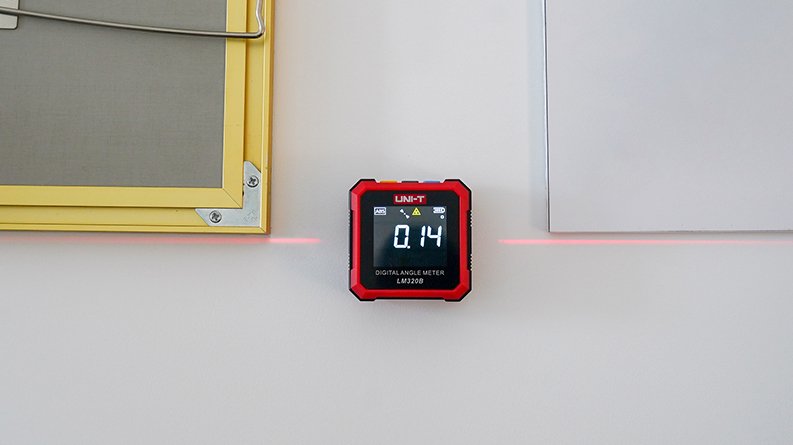

• Unique laser design

Category	Specification (LM320B)
Measurement Range	4 × 90° (i.e. full 360°)
Accuracy	±0.2°
Resolution	0.01°
Measurement Modes	Absolute and relative angle measurement
Laser Indicator	Dual‑side laser beams for alignment
Display Type	EBTN (electroluminescent backlit) color display
Magnetic Base	Magnets on all four sides
Battery Type	Rechargeable 3.7 V lithium battery (~300 mAh) via USB‑C
Battery Life	Approx. 2 hours continuous use
Auto Power Off	Yes (after ~5 minutes of inactivity)
Low Battery Indicator	Yes
Angle Lock Function	Yes
Display Orientation	Auto‑flip screen when rotated
Operating Temperature	0 °C to 50 °C; ≤ 80 % RH
Dimensions	Approx. 62 × 62 × 32 mm
Weight	Approx. 123 g
Material & Build	Aluminum alloy housing; compact and lightweight
Certifications	CE, UKCA, RoHS compliant
