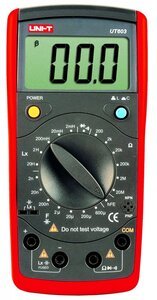

INDUCTANCE CAPACITANCE METER UT603 UNI-T

Name: INDUCTANCE CAPACITANCE METER UT603 UNI-T
Brand: UNI-T
SKU: 95491

UT600 series digital inductance capacitance meters are used to test resistors, capacitors and inductors. They can also be used to measure transistor parameters. FEATURES Certifications: CE, UKCA Manual range Continuity buzzer Diode/transistor Low battery indication Function Purpose / Application Capacitance Measurement Measure capacitor values (nF to µF), e.g., in power…

Price on request — message us for today's price and stock.

Enquire on WhatsApp Call +94 77 111 8880 Email enquiry

Brand: UNI-T
SKU: 95491
Category: Electrical Testers
Availability: In stock — enquire for price

Description

INDUCTANCE CAPACITANCE METER UT603 UNI-T

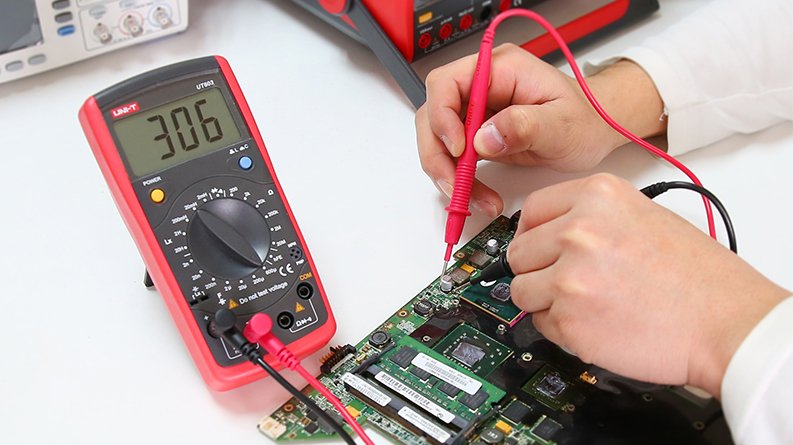

UT600 series digital inductance capacitance meters are used to test resistors, capacitors and inductors. They can also be used to measure transistor parameters. FEATURES Certifications: CE, UKCA

Manual range
Continuity buzzer
Diode/transistor
Low battery indication

Function	Purpose / Application
Capacitance Measurement	Measure capacitor values (nF to µF), e.g., in power supplies, AC circuits, or filters.
Inductance Measurement	Measure inductors and coils, used in motors, transformers, chokes, and RF circuits.
Resistance Measurement	Check resistor values or wire/circuit resistance for continuity and diagnostics.
Transistor Testing (hFE)	Test NPN/PNP bipolar transistor gain — useful in analog circuit repair and DIY builds.
Continuity Check	Test for unbroken wires/connections with audible buzzer — fast fault detection.
Diode Testing	Check diode forward voltage and polarity — confirms if a diode is working properly.

Category	Specification (UT603)
Display Count	1999 (approximately 2000 counts)
Range Selection	Manual
Resistance Ranges	200 Ω / 2 kΩ / 20 kΩ / 200 kΩ / 2 MΩ / 20 MΩ / 200 MΩ
Resistance Accuracy	±(0.8% + 1 digit)
Capacitance Ranges	2 nF / 20 nF / 200 nF / 2 µF / 20 µF / 200 µF / 600 µF
Capacitance Accuracy	±(1.0% + 5 digits)
Inductance Ranges	2 mH / 20 mH / 200 mH / 2 H / 20 H
Inductance Accuracy	±(2.0% + 8 digits)
Measurement Functions	Resistance, capacitance, inductance, transistor gain (hFE), diode test, continuity buzzer
Continuity & Diode	Yes
Transistor Gain (hFE)	Yes
Display Size	Approx. 61 × 32 mm LCD
Power Supply	1 × 9 V battery (6F22 type)
Low Battery Indicator	Yes
Standard Accessories	Test leads (with crocodile clips), 9 V battery, holster, user manual (English)
Enclosure & Weight	Approx. 172 × 83 × 38 mm, ~312 g
Safety & Compliance	EMC-compliant to EN61326, fusing on L / C input terminals (0.315 A, 250 V fuse)
