Description

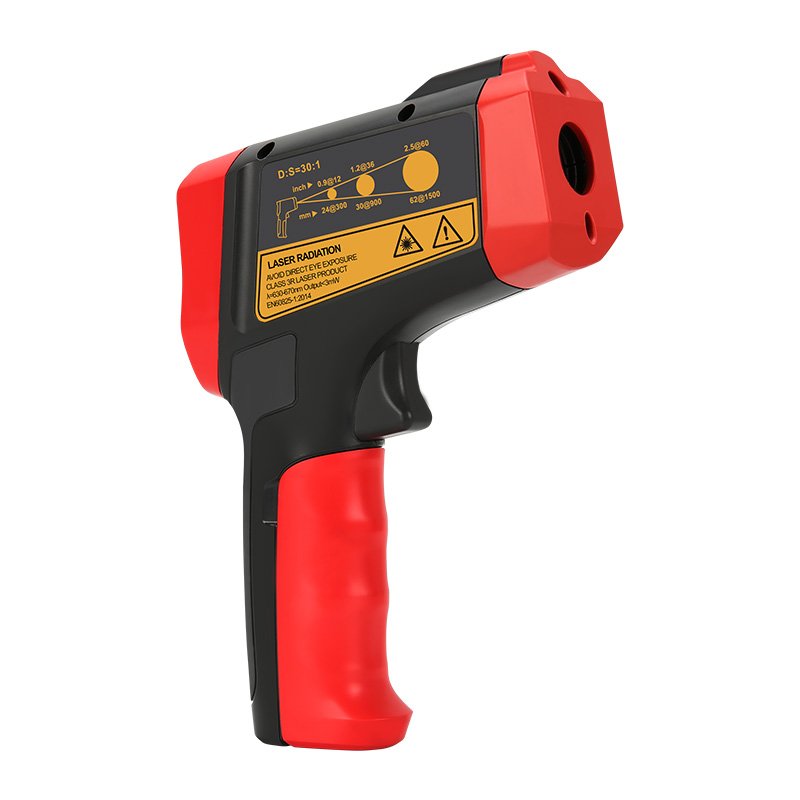

UT302C+ series infrared thermometer can quickly and accurately determine the surface temperature by measuring the infrared energy radiated from the target surface. It is suitable for non-contact surface temperature measurement. The UT302C+ has ring laser, an unique patented display method that covers entire measured area, user will know exactly where the measurement is taking place.
Applications of UT302C+ Series Infrared Thermometers

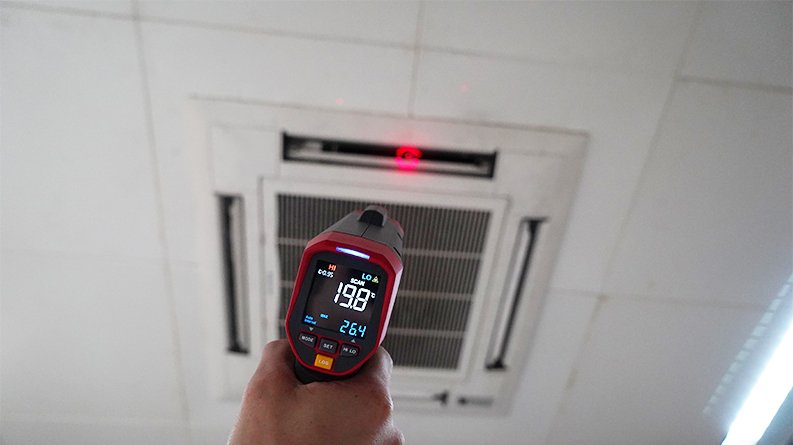

Air conditioning measurement

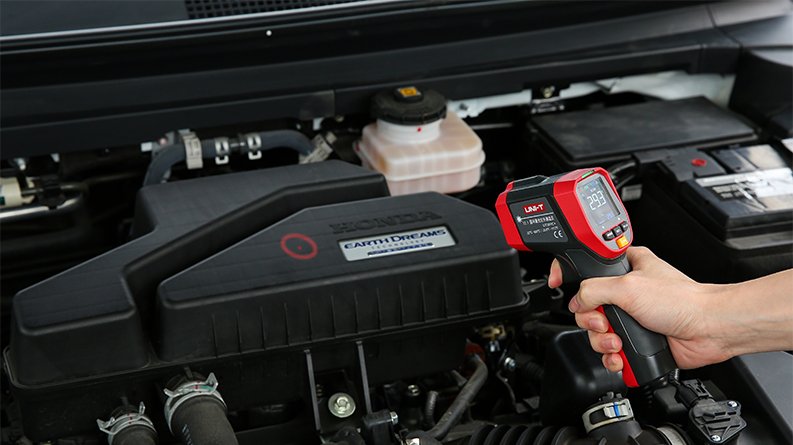

Vehicle inspection
Technical Specifications
- temperature range: -32°C to 1100°C (-25.6°F to 2012°F)
- temperature measurement accuracy ≥0°C: ± 1.5°C or ± 1.5%, measurement, whichever is greater
- temperature measurement accuracy <0°C: ± (1.5°C + 0.1 °C / °C, measurement, whichever is greater)
- temperature measurement accuracy ≥32°F: ± 3.0°F or ± 1.5%, measurement, whichever is greater
- temperature measurement accuracy <32°F: ± (3.0°F + 0.1°F / °F, measurement, whichever is greater)
- measurement repeatability: 0.7°C or 0.7% (1,5°F or 0.7%, measurement, whichever is greater)
- spectral response: 8μm to 14μm
- response time in 95% of cases: 250 ms
- class 3R circular laser: wavelength 630nm to 670nm, output power ≤3mW
- display: contrasting color EBTN with backlight measuring 35 x 35 mm
- indication of limit values by means of LEDs red, green, blue and buzzer
- setting the emissivity of the measured surface in the range of 0.1 to 1.0
- 5 types of emissivity can be stored in memory
- 5 sets of high / low temperature warning presets can be stored
- measurement lock for processes that require long-term temperature monitoring
- system time, programming of interval temperature measurement
- measurement storage memory: yes, up to 99 measurement sets
- automatic shutdown when idle
- power supply: 9V battery
- low battery indication: yes
- drop test from a height: 1 m
- tripod mounting hole: yes
- pause of the MAX / MIN / AVG / DIF value
- operating temperature: 0°C to 50°C (32°F to 122°F)
- operating humidity: <90% RH (non-condensing)
- storage temperature: -20°C to 60°C (-4°F to 140°F)
