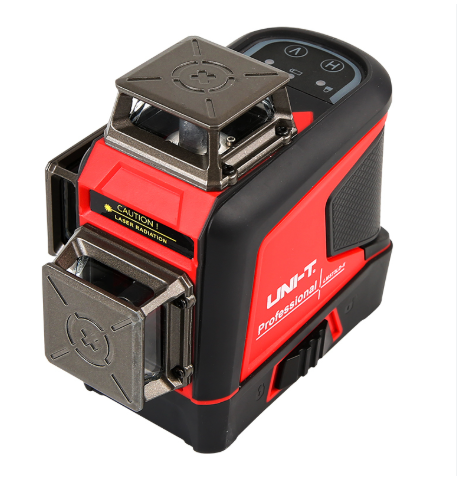

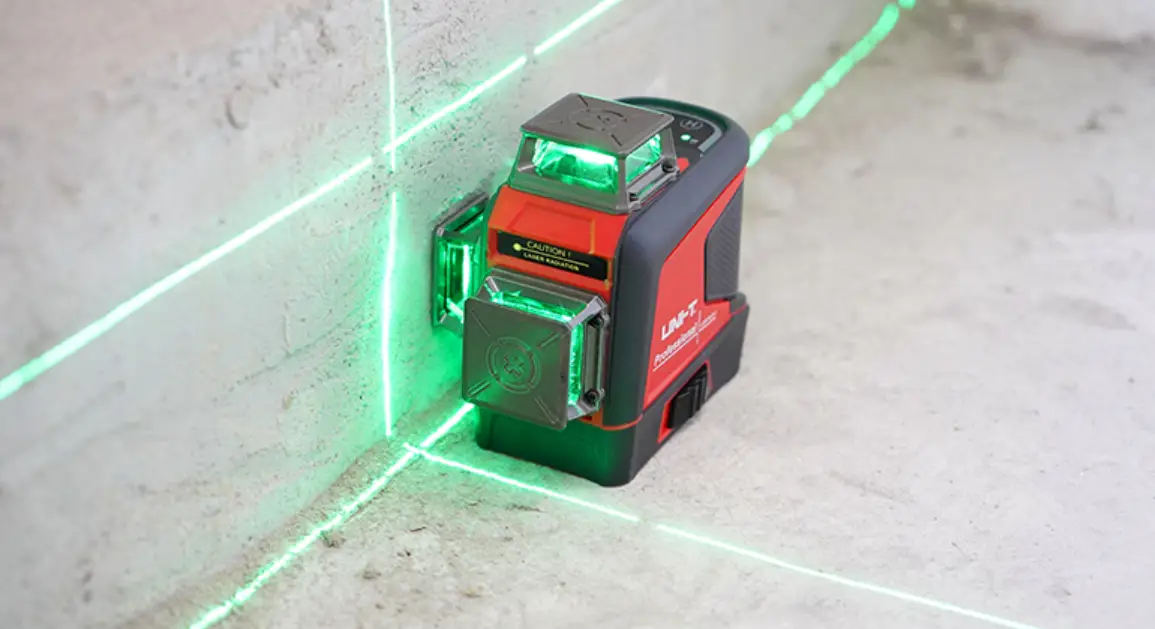

LINE LASER LM573LD-II UNI-T

Description

LINE LASER LM573LD-II UNI-T

The LM573LD‑II is part of UNI‑T’s 3D 12‑line green laser series. It projects horizontal and dual vertical lines for complete 360° coverage, with ±3 mm/10 m accuracy and a fast self-leveling mechanism (<3 seconds). Equipped with a 5200 mAh rechargeable Li-ion battery, it delivers over six hours of continuous operation. Outdoor pulse mode and remote control functionality make it ideal for both indoor and bright work environments. Safety features include Class 2 laser emission and full-angle line projection.

Category	Specification
Laser Type	Green laser diode
Wavelength	Approximately 520 nm
Laser Power / Class	About 30 mW, Class 2
Number of Lines	12 lines (3D full 360° projection)
Projection Modes	Horizontal + 2 vertical planes
Accuracy	±3 mm per 10 m (±60 arc-seconds)
Line Width	Less than 4 mm at 10 m
Operating Distance	Up to ~40 m (pulse mode); ~50 m with receiver
Self-Leveling Range	±3°
Self-Leveling Time	Less than 3 seconds
Operating Time	More than 6 hours continuous
Pulse Mode (Outdoor Use)	Yes, for use with laser receiver
Remote Control Support	Yes
Battery Type & Capacity	Rechargeable Li-ion pack (2 × 18650 cells, 5200 mAh)
Charging Port	USB Type-C
Emission Angle	Full 360° projection
Minimum Projection Distance	About 10 mm from wall for clear lines
Operating Temperature	–10°C to +50°C
Dimensions (L × W × H)	Approximately 119 × 89 × 138 mm
Weight	Approximately 694 g
Certifications	CE, UKCA
Included Accessories	Remote control, battery pack, USB cable, adapter, bracket, user manual
