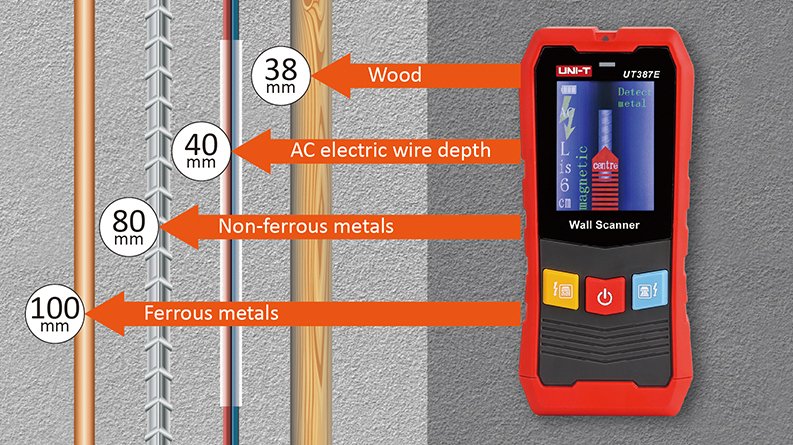

| Detection Modes |
AC live wire, ferrous metal, non-ferrous metal, wooden studs |
| Screen Display |
2.4″ color LCD |
| Metal Scan Depth |
Up to 100 mm |
| Non-Ferrous Metal Depth |
Up to 80 mm |
| Wood / Stud Scan Depth |
Precision mode: ~20 mm; Depth mode: up to ~38 mm (Manuals+, Tekonlab) |
| AC Live Wire Detection Depth |
Up to ~40 mm (110–220 V, 50–60 Hz) |
| Detection Accuracy (stud mode) |
±15 mm at around 28.5 mm depth |
| Audio & Visual Alerts |
Voice broadcast and LED/Buzzer alarms |
| Auto Calibration |
Yes (automatic, also manual key-triggered reset) (Manuals+) |
| Auto Power-Off |
After approx. 5 minutes inactivity (Manuals+) |
| Power Supply |
Rechargeable 300 mAh Li‑ion; USB‑C recharging (Manuals+) |
| Battery Life |
~3000 single measurements per charge |
| Operating Conditions |
0 °C to 40 °C; humidity varies by mode (wood: up to 60 % RH) |
| Storage Conditions |
–20 °C to 60 °C; ≤ 85 % RH |
| Drop Resistance |
Survives 1 m drop (Manuals+) |
| Dimensions (L × W × H) |
~153 × 68 × 31 mm (Tekonlab, Manuals+) |
| Weight |
~151 g |
| Certifications |
CE, RoHS compliant (uni-t.hu, Tekonlab) |
| Accessories Included |
USB‑C cable, instruction manual, protective pouch/box (Tekonlab, Manuals+) |
| Key Extra Function |
Voice broadcast of detection mode and object type |
