| Display Resolution |
6000 counts (True RMS, auto‑range) |
| Jaw Opening Diameter |
42 mm |
| AC Current Range |
1000 A; accuracy ±(2.0% + 5 digits); frequency response: 40–400 Hz |
| DC Current Range |
1000 A; accuracy ±(2.0% + 5 digits) |
| Inrush Current (AC) |
1000 A; ±(10% + 10 digits) (sampling ~100 ms) |
| AC Voltage Range |
Up to 1000 V; 6 V ±(1.2%+3), 60/600/1000 V ±(1.0%+8) |
| DC Voltage Range |
Up to 1000 V; 600 mV ±(0.8%+3), 6/60 V ±(0.5%+5), 600/1000 V ±(0.5%+5) |
| LPF ACV |
600 V / 1000 V; ±(2.0% + 5) |
| LoZ ACV (Low‑impedance mode) |
600 V / 1000 V; ±(2.0% + 5) |
| Resistance Range |
Up to 60 MΩ; e.g. 600 Ω ±(1.0%+3), up to 6 MΩ/60 MΩ ±(2.0%+8) |

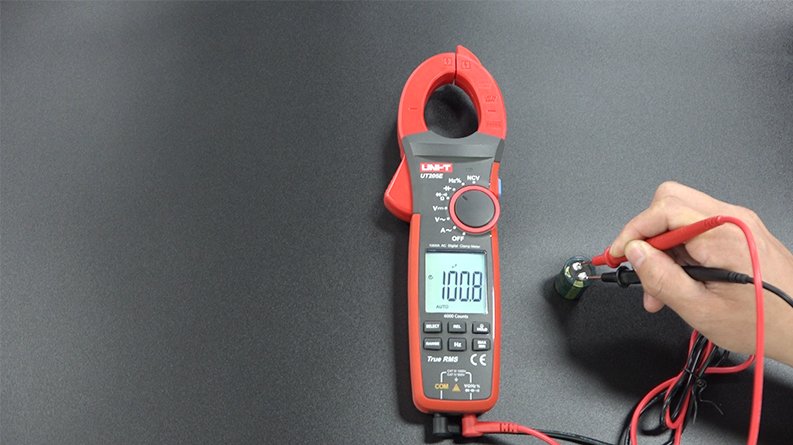

| Capacitance Range |
Up to 60 mF; small ranges ±(4.0% + 25), typical ±(4.0% + 5), upper: ±(10% + 9) |
| Frequency / Duty Ratio |
10 Hz–1 MHz ±(0.1%+3); duty 10–90% ±(2.6%+7) |
| Continuity Test |
Yes (audible beep) |
| Diode Test |
Yes |
| NCV (Non‑Contact Voltage) |
Yes (multi‑segment display with buzzer/LED alarm) |
| Other Features |
Data hold; MAX/MIN; relative zero mode; auto‑power off (can disable); flashlight; zero mode |
| Input Impedance (ACV/DCV) |
≥ 10 MΩ |
| Analog Bargraph Display |
31‑segment bar graph for trend indication |
| Power Supply |
3 × 1.5 V AAA batteries |
| Display Size |
Approx. 43 × 45 mm |
| Product Weight (with batteries) |
~420 g |
| Dimensions (L × W × H) |
272 × 81 × 43.5 mm |
| Safety & Certifications |
CAT III 1000 V / CAT IV 600 V; double‑insulation; meets IEC 61010 standards |
| Standard Accessories Included |
Test leads, batteries, carrying pouch, English manual |
