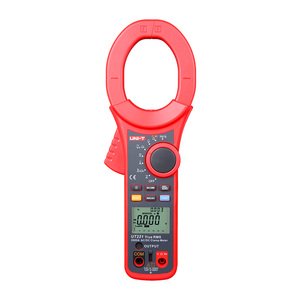

2000A DIGITAL CLAMP METER UT221 UNI-T

Name: 2000A DIGITAL CLAMP METER UT221 UNI-T
Brand: UNI-T
SKU: 95479

UT220 series are 2000A AC/DC digital clamp meters. This series ensures stable performance, safety, and reliability for measuring up to 2000A AC (and DC for UT221) current. It is designed with over-load protection for all ranges, perfect for all professionals. FEATURES Auto range Continuity buzzer MAX/MIN Diode Data hold…

Price on request — message us for today's price and stock.

Enquire on WhatsApp Call +94 77 111 8880 Email enquiry

Brand: UNI-T
SKU: 95479
Category: Clamp Meters
Availability: In stock — enquire for price

Description

2000A DIGITAL CLAMP METER UT221 UNI-T

Auto range
Continuity buzzer
MAX/MIN
Diode
Data hold
Low battery indication

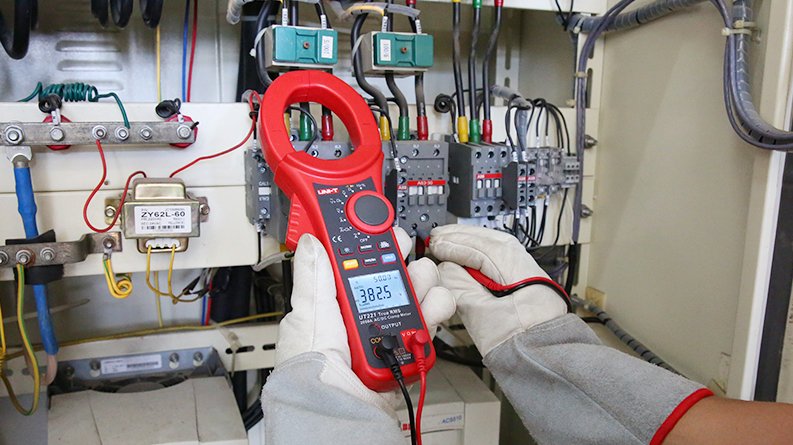

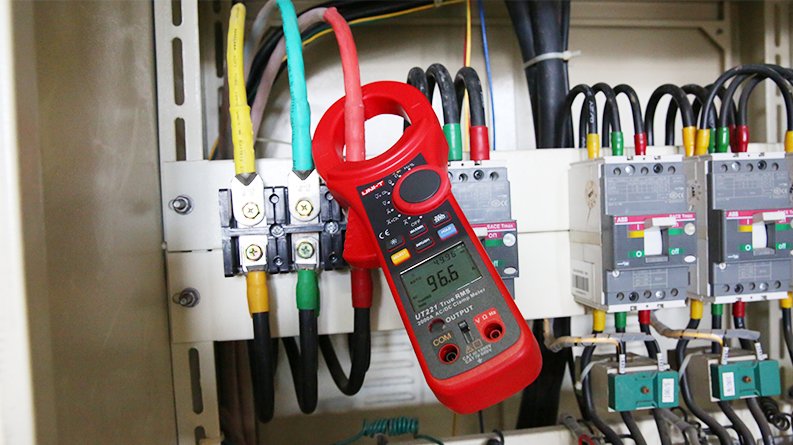

APPLICATIONS

UT221 voltage measurement
UT221 current measurement

Category	Specification (UT221)
Display Count	4000 counts
Jaw Opening	60 mm
AC Current Range	0–2000 A (±2.0% + 5 digits)
DC Current Range	0–2000 A (±2.0% + 5 digits)
AC Voltage Range	0–750 V (±1.2% + 5 digits)
DC Voltage Range	0–1000 V (±1.0% + 5 digits)
Resistance Range	0–40 MΩ
Capacitance Range	0–100 μF
Frequency Range	10 Hz – 10 MHz
Temperature Measurement	-40 °C to 1000 °C
Continuity Test	Yes (buzzer if resistance < 30 Ω)
Diode Test	Yes
Data Hold	Yes
MAX/MIN Mode	Yes
Display Backlight	Yes
Low Battery Indication	Yes
Auto Power Off	Yes (after ~15 minutes of inactivity)
Safety Rating	CAT III 1000 V, CAT IV 600 V
Power Supply	1 × 9 V battery (6F22)
Dimensions (L×W×H)	286 × 105 × 45 mm
Weight	~600 g (including battery)
True RMS	Yes
