Description

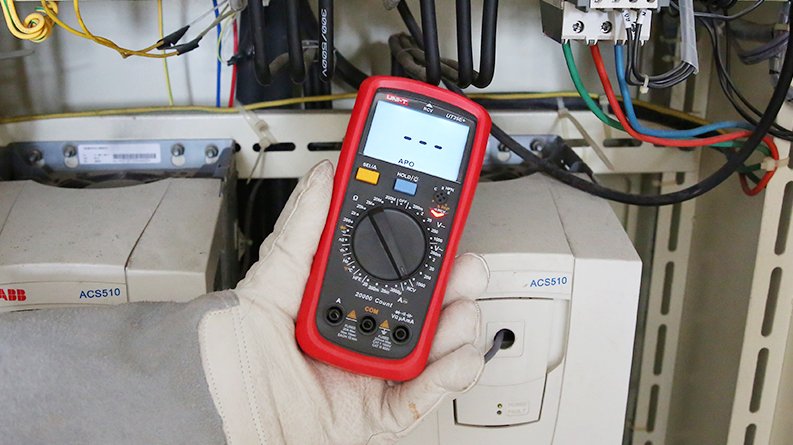

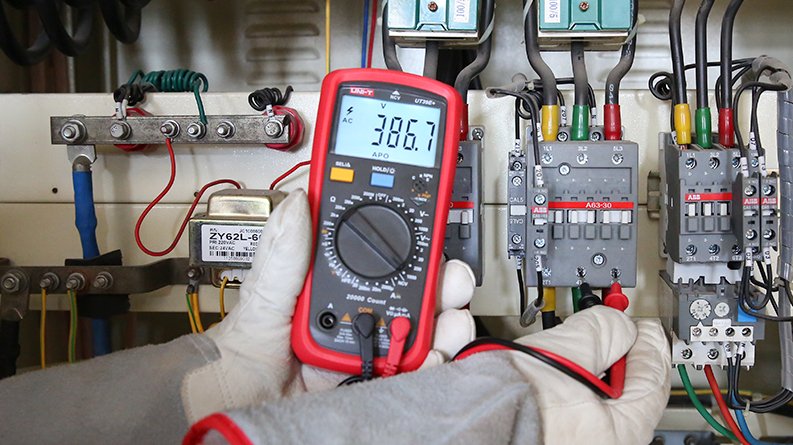

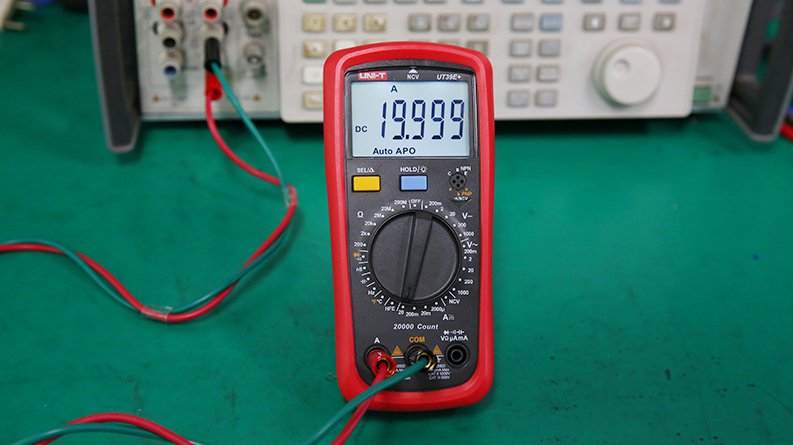

DIGITAL MULTIMETER UT39A+ UNI-T
UT39+ series modern digital multimeters are portable devices designed for the electrical industry. They feature overvoltage and overcurrent alarm and high voltage protection, triggered during faulty operation.
Features of UT39+ Series Digital Multimeters
● 1000V DC voltage measurement
● 750V AC voltage measurement
● 10A DC/AC current measurement
● Resistance/Capacitance
● hFE
● Diode/Continuity test
Specifications of UT39+ Series Digital Multimeters
| Specifications |
Range |
UT39A+ |
| Category ratings |
CAT II 1000V, CAT III 600V |
| DC voltage (V) |
400mV/4V/40V/400V/1000V |
±(0.5%+5) |
| 200mV/2V/20V/200V/1000V |
|
| AC voltage (V) |
4V/40V/400V/750V |
±(0.8%+3) |
| 200mV/2V/20V/200V/1000V |
|
| DC current (A) |
40μA/400μA/4mA/40mA/400mA/10A |
±(0.8%+3) |
| 400μA/400mA/10A |
|
| 2000uA/20mA/200mA/2A/20A |
|
| AC current (A) |
40mA/400mA/10A |
±(1%+2) |
| 4mA/400mA/10A |
|
| 2000uA/20mA/200mA/2A/20A |
|
| Resistance (Ω) |
400Ω/4000Ω/40kΩ/400kΩ/4MΩ/200MΩ |
±(0.8%+2) |
| 400Ω/4000Ω/40kΩ/400kΩ/4MΩ/40MΩ |
|
| 200Ω/2kΩ/20kΩ/2MΩ/20MΩ/200MΩ |
|
| Capacitance (F) |
10mF |
±(4%+5) |
| 2000uF |
|
| Frequency (Hz) |
10Hz~1MHz |
|
| 10Hz~2MHz |
|
| Temperature |
-40℃~1000℃ |
|
| -40℉~1832℉ |
|
| Conductance (nS) |
0.1~100nS |
|
| Display count |
|
4000 |
| NCV |
|
|
