Description

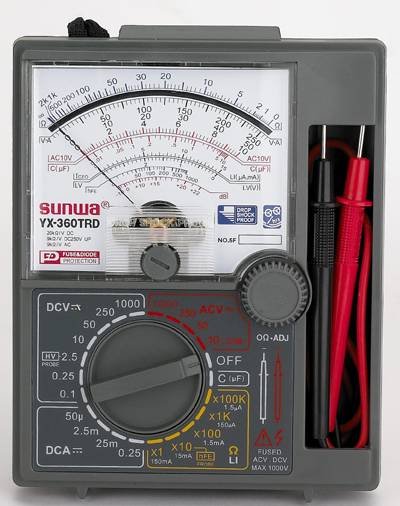

YX-360TRD Multimeter – Samwa

The Samwa YX-360TR is an analog multimeter, you can use it to measure AC/DC voltage, DC current, resistance, diode check, continuity and transistor leak current, for DC current, it can measure as low as 10 micro amps and up to 250 mA, which is hard to do with a digital multimeter. Specifications:

• DCV: 0 – 0.1V ±1% 0.25V/2.5/10V/50V/250/1000 ±3%
• ACV: 0 -10/50/250/1000V ±4%
• DCA: 0 – 50µA/2.5mA/25mA/250mA ±3%
• Resistance: 0 – 2K/20K/200K/2M/20Mohm ±3%
• dB: -10 dB – 22 dB
• Diode check (including LED)
• Continuity: both Buzzer & flash
• Transistor leak current
