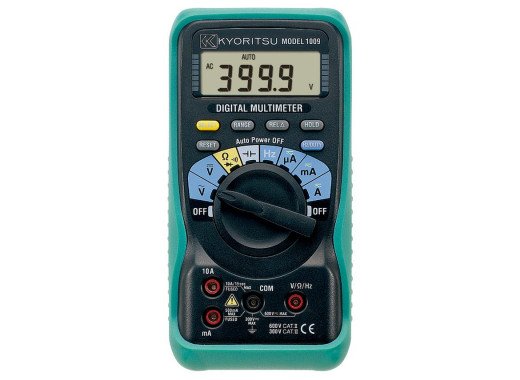

The Kyoritsu 1009 is a simple but versatile digital multimeter which can measure up to 600V/10A. This multimeter features the most frequently used measurement functions such as; AC/DC voltage and current, resistance, continuity (buzzer), frequency and even duty cycle.
The meter is covered by a firm rubber bezel to make it suitable for use under rough conditions. In addition to this, it features an easy-to-use rotary knob to select the measurement functions. The different measurement ranges can either be selected automatically, or manually by the click of a button. Furthermore, relative measurements and a data-hold function are also included. To prevent the battery from draining if the user forgets to shut the device off, it is equipped with an auto power-off feature.
Specifications
| Voltage DC/AC |
400mV - 600V |
| Current DC/AC |
400µA - 10A |
| Resistance |
400Ω - 40 MΩ |
| Continuity buzzer |
sound below 50Ω |
| Capacitance |
40nF - 100µF |
| Frequency |
5.12 Hz - 10 MHz |
| True RMS |
No |
| Display |
4000 counts |
| Safety category |
CAT IV 300V |
| Power Source |
2x R6P(AA) batteries |
| Dimensions |
155x75x33 mm |
| Weight |
260g |
Accessories
The Kyoritsu 1009 comes with:
- Test leads
- Fuse
- Batteries
